Gator 5c Manual Adjustable Collet Chuck


1-401-0599




Product Details


Chuck Dia 5.00
Mounting Adjustable d 2.165 H7
C 0.591
D1 3.476
L 5.000
Collet Thread Tr 1.240" 20UN
RPM 6,000
T.I.R. 0.0004

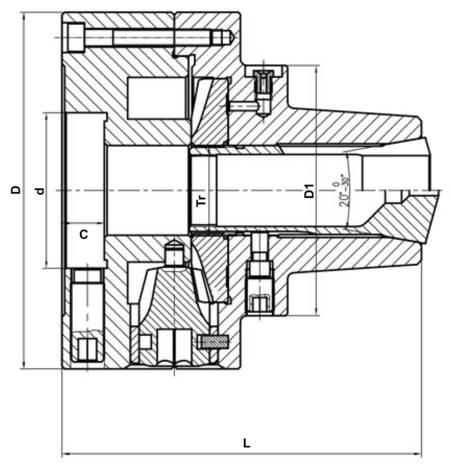

Line Drawing

For 5C Collet Chucks, Adjustable:

  • Two pinion design.
  • High quality forged steel body.
  • Scroll and pinions are hardened and ground.
  • Great for grinding, turning, milling & boring operations.
  • Fine adjusting screws (4) set up the chuck on a steel fully finished adapter within 0.0004" T.I.R.
