Gator 5c Manual Plain Back Collet Chuck


1-401-0500

Chuck Dia 5.00
Mounting Plain Black d 3.740 H6
C 0.197
D1 3.476
L 4.724
L1 2.205
Collet Thread Tr 1.240" 20UN
RPM 6,000
T.I.R. 0.0004

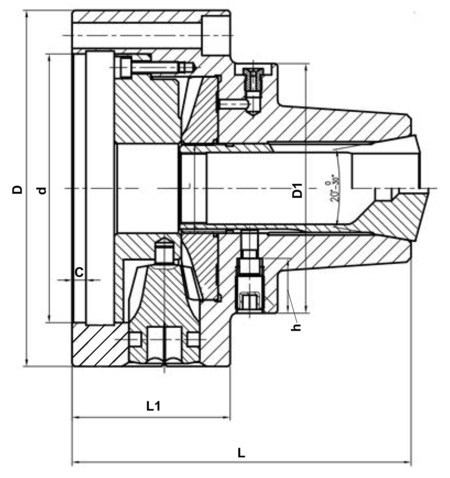

Line Drawing
  • Two pinion design.
  • High quality forged steel body.
  • Scroll and pinions are hardened and ground.
  • Great for grinding, turning, milling, & boring operations.
  • Back plate requires skim cut on the chuck side.



For 5C Collet Chucks, Plain Back:
