Pratt Burnerd/Atlas

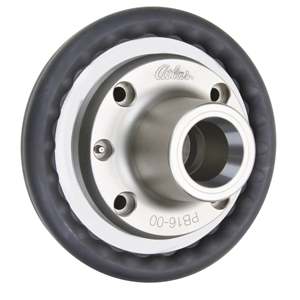

Front Hand Wheel Quckie 5C Collet Chucks

  • Fast and easy, front hand wheel operation

  • Reduces operator fatigue

  • Quick Change over Chuck to Collet Chuck - No linkages or drawtubes

  • For 5C collets (Max 5C Gripping Round 1.062")

  • One year warranty

  • Accurate-Maximum cone TIR .0005"

  • Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper

  • Hand wheel teeth nitrided for longer life

  • Body nickel plated for corrosion resistance

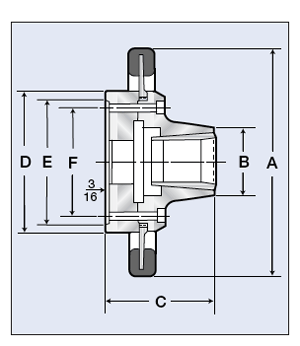

Plain Back Chuck Specifications
Item No. Desc. Collet Type Round Cap. A B C** D E F Weight
PB23-00 5C-PB 5C 1.06 9.0* 2.25 4.25 5.5 5 4.12 19
**Dimension C is chuck without spindle adapter mounting plate. Add approximately 1.125" to dimension C. If exact ‘B’ dimension with mounting plate is required contact factory.

D Type Cam-Lock Chuck Specifications
Item No. Spindle Round Cap. Weight Lbs
PB23-D3 D1-3 1.06 22
PB23-D4 D1-4 1.06 22
PB23-D5 D1-5 1.06 22
PB23-D6 D1-6 1.06 25
PB23-D8 D1-8 1.06 30
PB23-D11 D1-11 1.06 35


A Type American Standard Chuck Specifications
Item No. Spindle Round Cap. Weight Lbs
PB23-A4 A1-4 1.06 22
PB23-A5 A1-5 1.06 22
PB23-A6 A1-6 1.06 25
PB23-A8 A1-8 1.06 28
PB23-A11 A1-11 1.06 33


L Type American Standard Chuck Specifications
Item No. Spindle Round Cap. Weight Lbs
PB23-L00 L00 1.06 23
PB23-L0 L0 1.06 25
PB23-L1 L1 1.06 35
PB23-L2 L2 1.06 40


Threaded Mount
Chuck Specifications
Item No. Spindle Round Cap. Weight Lbs
PB23-41 1-1/2-8 1.06 23
PB23-42 1-3/4-8 1.06 23
PB23-43 2-1/4-8 1.06 23
PB23-44 4° Taper 1.06 25
PB23-45 2-3/16-10 1.06 23
PB23-46 2-3/8-6 1.06 23
