1-401-0500: Manual Lathe Chucks
Product Details
| Chuck Dia |
5.000 |
| Mounting Plain Black d |
3.740 H6 |
| C |
0.197 |
| D1 |
3.476 |
| L |
4.724 |
| L1 |
2.205 |
| Collet Thread Tr |
1.240" 20UN |
| RPM |
6,000 |
| T.I.R. |
0.0004 |

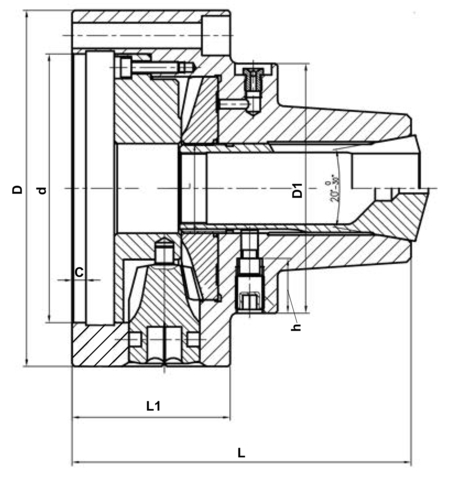

| Line Drawing |
 |
For 5C Collet Chucks, Plain Back:
- Two pinion design.
- High quality forged steel body.
- Scroll and pinions are hardened and ground.
- Great for grinding, turning, milling, & boring
operations.
- Back plate requires skim cut on the chuck side.
|
1-401-0599: Manual Lathe Chucks
With Fine Truing Adjudsment
Product Details
| Chuck Dia |
5.000 |
| Mounting Adjustable d |
2.165 H7 |
| C |
0.591 |
| D1 |
3.476 |
| L |
5.000 |
| Collet Thread Tr |
1.240" 20UN |
| RPM |
6,000 |
| T.I.R. |
0.0004 |

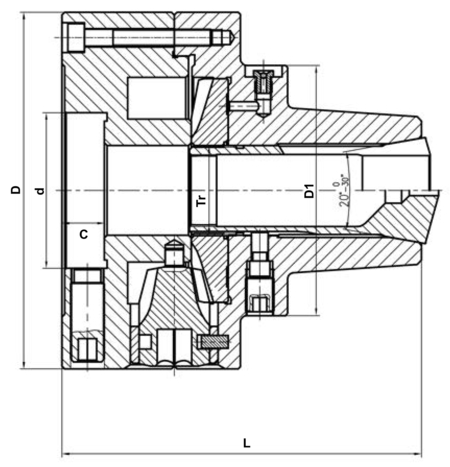

| Line Drawing |
 |
For 5C Collet Chucks, Adjustable:
-
Two pinion design.
-
High quality forged steel
body.
-
Scroll and pinions are
hardened and ground.
-
Great for grinding,
turning, milling & boring operations.
-
Fine adjusting screws (4)
set up the chuck on a steel fully finished adapter
within 0.0004" T.I.R.
|
