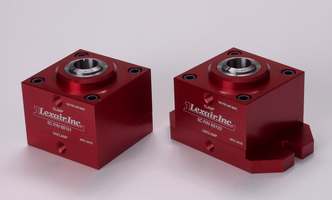

Lexair 5C Low Pressure Pneumatically Actuated Collet Closers

Our low pressure pneumatically actuated collet closers are double acting, pull-back design for use with "5C" style collets. These rugged units are made from solid aircraft aluminum. The force generated by the drawtube is 7.5 times the line pressure applied. The units feature working pressures to 150 PSI and come standard with a "5C" collet wrench.

Lexair can supply precision machined standard collets, master collets and pads, emergency collets, serrated collets plus uniquely shaped collets by special order.

Specifications and Model Numbers

Model Number Collet Type Maximum Air Pressure Drawtube Force (pounds) Port Size
65101 5C 150 PSI 7.5 x Line Pressure 1/4 NPT
65102
Flange Mount
5C 150 PSI 7.5 x Line Pressure 1/4 NPT

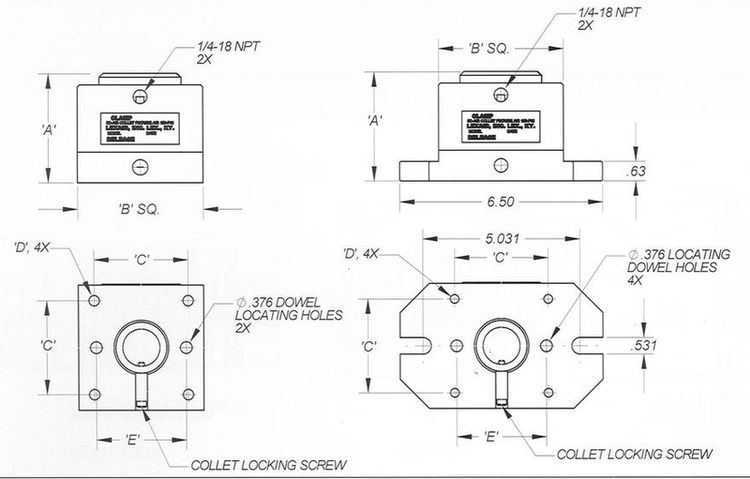

Model Number

Collet Type

A

B

C

D

E

65101

5C

3.50

4.00

3.00

3/8-24

2.875

65102
Flange Mount

5C

3.50

4.00

3.00

3/8-24

2.875

All units of measure are inches.
