Atlas Air Powered Front Mount 16C Dead Length Collet Chucks
|
|
No Draw-Tube or Air Feed Tubes Required: for Lathes, Rotary Tables, and Grinders:
Series ATL207-16C
*No Hydraulic System Required
*No Draw Tube or Air Feed Tubes Restricting Spindle Bore
*No Rear Cylinders and Cylinder Adapters
*Low Cost
*Easily Convert any Lathe or Grinder into a Production Machine
*Ideal
for Rotary Table Applications
*Change from Collet Chuck to Standard Chuck Quick and
Easy
*High Speed 4000 RPM
*High Accuracy Less Than .001” TIR
*Repeats on Duplicate Parts Plus Minus .00015”
*Dead Length Design
*For Best Accuracy Use High Quality Crawford Collets
*Lever or Foot Pedal Actuated
*Low Maintenance with Oil Mist Lubrication System
*High Resistance to Coolant and Chip Penetration
*Uses 16C Collets, Range 1/16" (1 m) to 1-5/8" (42.5mm)
*Available in A, D, L, 4 Degree, Threaded and Straight
Recess Mounting |
| |
Collet Chuck |
ATL207-16C |
Specifications |
ATL207-16C |
|
Collet Chuck Order No. with Mount:
ATL207-16CAP
Straight Recess Mount
Type A Mount
ATL207-16CA5
ATL207-16CA6
ATL207-16CA8
Type D Mount
ATL207-16CD4
ATL207-16CD5
ATL207-16CD6
ATL207-16CD8
Other Mounts
ATL207-16C44-4° Taper
ATL207-16C45-23⁄16-10
ATL207-16C46-23⁄8-6
Collet Chuck Supplied with:
• 2 Filter Bars
• 2 Air Hoses
• 1 Fixing Bracket for Hoses
• 1 16C Collet Wrench
• 1 Hex Key
• Mounting Bolts
• Users Manual
|

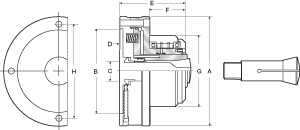

A |
195mm (7.67") |
Screw Hole Dia |
9mm (0.35") x 3 |
| B |
160mm (6.30") |
Collet Type |
16C Collets |
| C |
40mm (1.57") |
Max. RPM |
3500 |
| D |
5mm (0.20") |
Sleeve Stroke |
4mm (0.16") |
| E |
112mm (4.41") |
Air Pressure |
3-8 kg/cm2 (42-114 psi) |
| F |
63mm (2.48") |
Through Hole Dia |
40mm (1.57") |
| G |
133mm (5.23") |
Chuck Weight |
14kg (30.8lbs) |
| H |
176mm (6.93") |
Grip Force |
8,971 lbs @ 100 PSI |
|
NOTE: “E” shown is for
model ATL207-16C Collet Chuck with no mounting
plate.
Add 3/4" to the “E” dimension for mounting plate.
This will vary slightly depending on the mounting
required. If an exact “E” dimension is required,
consult factory.
OPTIONS: Order No: LEV100 Lever Control Package:
(Includes: Lever Control, Line Filter, Lubricator
and regulator.)
Order No: FOT200 Foot Pedal Control Package:
(Includes: Foot Pedal, Line Filter, Lubricator and
regulator.)
|
|
|
